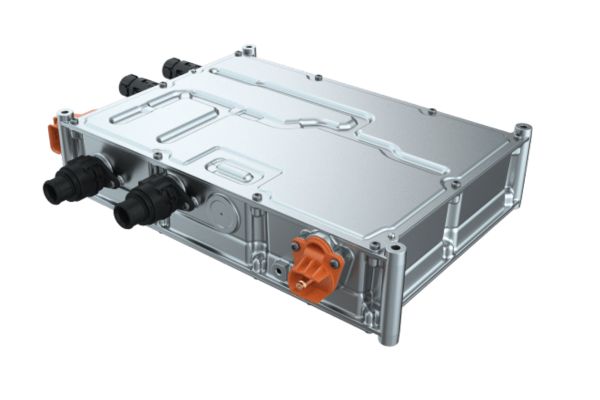

Electric vehicles (EVs) are becoming increasingly popular worldwide, and a key component enabling their seamless adoption is the on-board charger (OBC). This essential device is responsible for converting the AC power from public or home charging stations into the DC power needed to charge the vehicle’s battery. As EV demand grows, the focus is shifting towards making these chargers faster, smarter, and more integrated into the vehicle’s overall system. Advancements in on-board charging technology are not only improving charging times but also enhancing the safety, efficiency, and intelligence of the overall electric vehicle ecosystem.
The Need for Faster Charging Capabilities
One of the primary concerns for EV users is the time it takes to recharge their vehicles. While DC fast chargers can offer quick charging externally, they are not always available or feasible for daily use due to cost and infrastructure limitations. On-board chargers play a crucial role in addressing this challenge by offering faster Level 2 charging options that are more accessible at homes, offices, and parking spaces.
Modern OBCs are now capable of delivering higher power ratings, typically ranging from 7 kW to 22 kW, depending on the vehicle type and regional power standards. These power levels can significantly reduce charging times compared to earlier models. With dual or three-phase charging support, the time needed to fully charge a battery can drop from overnight to just a few hours, making EV ownership more practical and attractive for daily drivers.
Smart Features for Efficient Energy Management
As power grids worldwide face increasing pressure due to electrification, smart charging has become an essential part of OBC development. Smart on-board chargers can communicate with the grid and intelligently manage charging sessions to reduce peak loads and optimize energy usage.
This intelligent communication is facilitated through vehicle-to-grid (V2G) and vehicle-to-home (V2H) capabilities. With V2G, the on-board charger allows the vehicle to return energy to the grid when demand is high, while V2H enables the EV battery to power a home in emergencies or during peak tariffs. These bi-directional charging features rely on sophisticated embedded systems within the OBC, which monitor battery health, user preferences, electricity rates, and grid signals in real time.
Additionally, smart chargers support over-the-air updates, ensuring the software controlling the charging process can be upgraded with new features, cybersecurity patches, or performance enhancements just like smartphones. These advancements enable drivers to maximize efficiency, reduce electricity costs, and actively contribute to grid stability.
Integration with Vehicle Architecture and Safety Standards
Today’s on-board chargers are no longer standalone components but are increasingly being integrated with other parts of the EV powertrain. This integration not only saves space but also reduces wiring complexity, weight, and manufacturing costs critical factors in EV design.
In many new-generation EVs, the OBC is combined with the DC-DC converter and the inverter into a single unit called a power electronic integration system. This architecture allows for better thermal management, improved energy flow, and increased power density, which are essential for high-performance electric vehicles.
Safety remains a critical factor in charging systems, especially when handling high voltages. Advanced OBCs are built with multiple layers of protection, including temperature monitoring, ground fault detection, surge protection, and battery isolation control. These features ensure user safety, prolong battery life, and meet global compliance standards such as ISO 26262 for functional safety in road vehicles.
Materials and Technologies Driving Innovation
The shift toward faster and smarter charging is made possible by improvements in materials and semiconductor technologies. Traditional silicon components are now being replaced by silicon carbide (SiC) and gallium nitride (GaN) semiconductors, which offer lower energy loss, higher voltage tolerance, and better thermal performance.
These wide-bandgap semiconductors enable more compact and efficient charger designs, reduce heat generation, and support higher switching frequencies. This not only improves the charger’s efficiency but also extends the vehicle’s driving range by minimizing energy loss during charging.
Moreover, improved magnetic components, better cooling systems, and lightweight casing materials contribute to making OBCs more durable and energy efficient, helping meet the sustainability goals of EV manufacturers.
Trends and Opportunities
As EV adoption accelerates, the demand for high-performing on-board chargers will continue to rise. Future OBCs will likely feature even higher power ratings, integrated AI-driven energy management systems, and seamless compatibility with a variety of global grid infrastructures.
Standardization across automakers and countries will also play a critical role. Harmonizing charging protocols and connector types can reduce cost, simplify manufacturing, and improve the user experience. Additionally, further development in wireless charging technology could eventually merge with on-board charging systems to create a fully automatic and cable-free charging process.
Governments and industry leaders are investing heavily in R&D to drive these changes forward. With continued support, the next generation of on-board chargers will not only reduce range anxiety but also transform EVs into intelligent energy assets for homes and cities.
Conclusion
Electric vehicle on-board chargers have evolved into more than just power converters they are becoming central to how EVs interact with users, power grids, and the environment. With the integration of fast charging capabilities, smart energy management, and advanced materials, OBCs are playing a critical role in the growth of the electric mobility revolution. As technology advances, these systems will only become more powerful, efficient, and intelligent, making electric vehicles a smarter and more sustainable choice for the future.
