Powering the EV Revolution: Why Modular Converters Matter

Meeting the Power Demands of EV and Future Mobility Systems

As electric vehicles (EVs), fast-charging infrastructure, and intelligent mobility platforms continue to evolve, power architectures are under increasing pressure to deliver higher power density, reinforced electrical isolation, multiple voltage domains, and long-term reliability—all within limited PCB space and shortened development cycles.

In modern EV platforms, DC-DC converters are no longer auxiliary components. They form a critical electrical bridge between high-voltage battery systems and low-voltage control electronics, directly influencing system safety, thermal performance, scalability, and time-to-market.

In practice, most EV engineering teams cannot afford the risk and time required to design discrete DC-DC converters from scratch. As a result, modular DC-DC converters with verified performance and automotive-grade reliability have become a strategic choice. While modular solutions may appear higher in unit cost, they consistently reduce overall system cost, design risk, certification effort, and development time.

With over 30 years of expertise in isolated DC-DC (1W–150W) and AC-DC (3W–60W) power solutions, MINMAX supports a wide range of EV and future mobility applications—from battery management systems to onboard electronics and auxiliary power rails.

1.    Optimizing Space Efficiency for EV and Mobility Electronics

EV electronic systems are densely packed and space-constrained, particularly in:

• Battery Management Systems (BMS)
• Inverters and auxiliary control units
• ADAS and sensor modules
• Onboard chargers and DC-DC subsystems

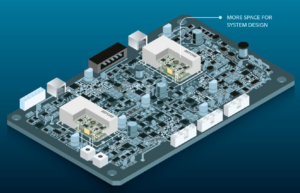

MINMAX prioritizes miniaturization in its isolated DC-DC converter designs, leveraging high-performance components and advanced integration techniques. Our research has achieved:

• Up to 75% footprint reduction compared with traditional discrete power designs, while maintaining the same output power.
• Power density up to 150 W/in³ in selected models, depending on input/output ratings and package type.

For EV designers facing strict PCB area and height limitations, modular DC-DC converters provide the most efficient path to high-performance power integration.

2. Scalable Power Architecture for Evolving EV Platforms

EV platforms must support:

• Multiple vehicle variants
• Regional configurations
• Future feature expansion

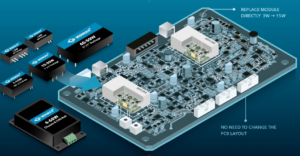

MINMAX’s modular DC-DC converters follow industry-standard form factors and pinouts, enabling:

• Seamless power upgrades without PCB redesign
• Easy replacement across different power levels
• Rapid platform reuse across vehicle generations

This modularity allows OEMs and Tier-1 suppliers to scale power capacity quickly while maintaining design consistency, significantly reducing engineering overhead.

3. Designing High-Performance Power Architectures for EV Systems

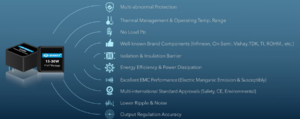

EV operating conditions are highly dynamic, with rapid load changes and wide temperature variations. To meet these challenges, MINMAX integrates advanced power technologies, including:

• Active clamping and synchronous rectification
• Low-ripple, low-noise circuit architectures

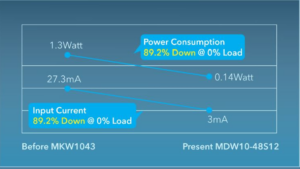

• High-efficiency energy-saving designs

These technologies ensure stable output voltage, fast transient response, and high efficiency—even under fluctuating loads and harsh operating environments typical of EV applications.

4. Thermal Management Challenges in High-Power Mobility Applications

Thermal management is one of the most critical challenges in EV power electronics. Excess heat directly impacts reliability, efficiency, and lifetime.

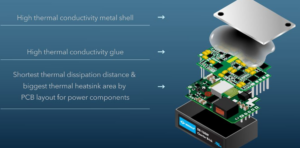

MINMAX’s isolated DC-DC converters address this through a holistic thermal design approach, including:

• High thermal-conductivity adhesives
• Metal shielding cases with excellent heat dissipation
• Optimized PCB layout and component placement

This design enables rapid heat transfer during operation, improves overall efficiency, and ensures stable performance in high-temperature and enclosed EV environments.

5. Designing for Reliability in Harsh and Mission-Critical Environments

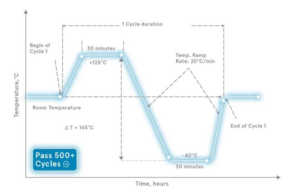

MINMAX’s modular power converters are rigorously tested for reliability, including over 500 temperature cycling tests simulating extreme conditions with temperature swings up to 165°C. Our designs use:

• High thermal conductivity adhesives and metal casings.
• Optimized PCB layouts for efficient heat dissipation.

6. Accelerating Development and Improving System Cost Efficiency

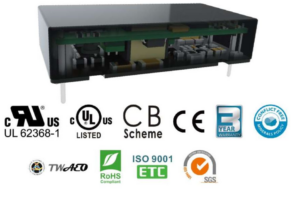

MINMAX’s modular DC-DC converters are designed to comply with international safety and insulation standards, helping customers:

• Eliminate additional certification effort
• Avoid costly in-house power design development
• Shorten development cycles and reduce risk

By adopting modular DC-DC solutions, EV developers can focus on system innovation rather than power qualification, achieving faster time-to-market and improved overall cost efficiency.

Conclusion: Modular Power as a Foundation for Future Mobility

In modern electric vehicles, DC-DC converters are no longer simple voltage converters—they are foundational building blocks that define safety boundaries, thermal behavior, scalability, and system reliability.

Modular isolated DC-DC converters enable EV designers to build flexible, efficient, and future-ready power architectures, balancing performance, safety, and development speed.

With decades of power conversion expertise, MINMAX delivers modular DC-DC solutions engineered to meet the evolving demands of EV and future mobility systems.

MINMAX’s expertise in modular power converters ensures exceptional value and performance for diverse industries.

Supreme Components International is an authorized MINMAX distributor, supporting customers worldwide with reliable availability, technical assistance, and fast global logistics. Whether for prototyping or production, our team ensures seamless access to genuine MINMAX power solutions.
